Product Features
- Designed for single color constant voltage LED lights in cabinet/ furniture application.
- DC12-24V, output current: 1ch*6A.
- Stable sensitivity with ITR sensor, soft light up and down.
- 3-year warranty exclude the artificial situation of damaged or overload working.
Technical Parameters
| Working temperature | 0-45℃ | Supply voltage | DC12V-24V |
| Static power consumption | <1W | Sensor | ITR |
| Sensor range | 0-8CM | Sensor cable | 1 meter |
| External dimension | L48*W26*H13 mm | Packing size | L100*W65*H40mm |
| Net weight | 50g | Gross weight | 65g |
| Output | 1 channel | Output current | ≤6A |
| PWM frequency | 490Hz | Max. Output power | 12V:<72W, 24V:<144W |
Dimensions
Controller:
Sensor:
Interface Specifications
Input port: DC plug (2.1/5.5, male) Loading port: DC plug(2.1/5.5, female)
Direction for use
Blocking the sensor like closing the door of furniture in 0-8CM range, output lighting will gradually to off;
Opening the door of furniture, the output light will gradually light up.
Sensor installation:
Typical Applications

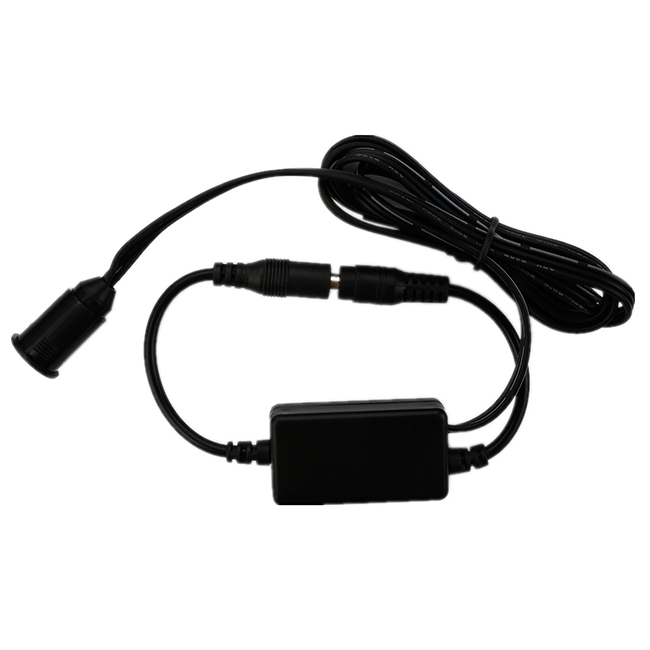

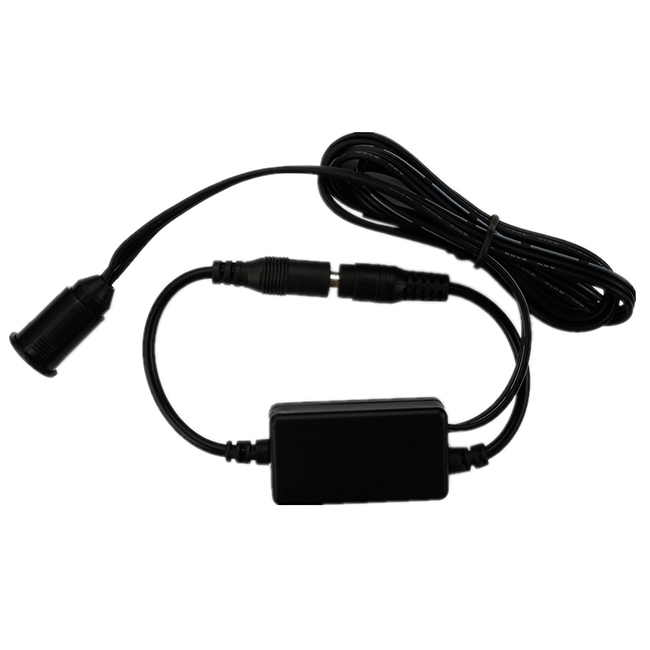

Product information for placing order
| Product name | Item number |
| MINI sensor switch controller | HX-MINI003-CB |
