Product Details
Features:

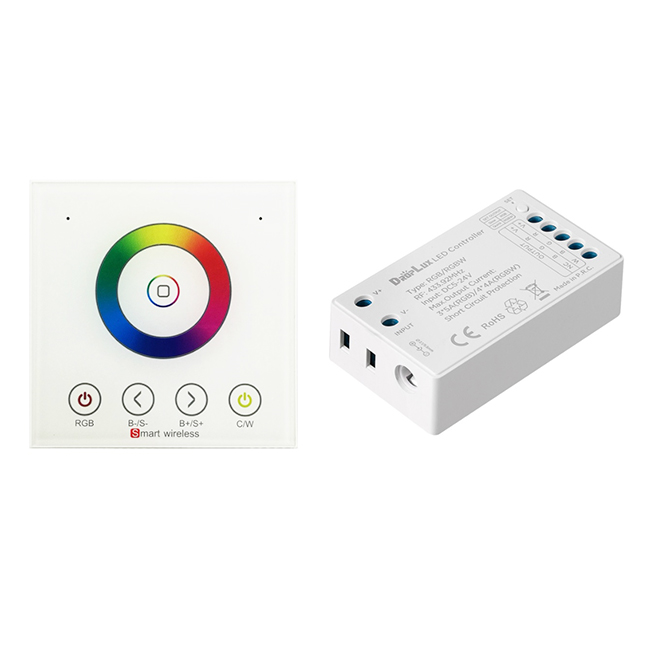

- Designed for RGBW constant voltage LED lights, Working voltage DC12-24V.
- Two channels output, Max. load current: 4CH*4A; Max. load power: 192W/12V; 384W/24V.
- The wall panel adopts the capacitive touch-sensitive design, unique appearance and easy-operation.
- RF frequency:2.4GHz, distance up to 20 meters, remote control is optional, compatible with SWC-RGB-2.4G.
- Memory function, each time power-on reserve the mode which stop in the last power-down.
- Amplifier is available to achieve more LEDs sync-control.
- Structure/dimension/installation of the wall panel according to the 86-type European standards.
- Warranty of this product is 3 years.
Technical Parameters:
The wall panel controller:
| Working temperature | -20-60℃ | Working voltage | DC 12~24V |
| Static power consumption | <1W | Connecting mode | Common anode |
| Gray scale | 256 levels | RF frequency | 2.4GHz |
| N.W | 140g | G.W | 160g |
| External dimension | L86*W86*H34mm | Packing dimension | W89*L89*H40mm |
| Output | 4 channels | Max. Output current | 4A*4CH |
| PWM frequency | 700Hz | Max. Output power | 12V:192W, 24V:384W |
Dimension:
Interface Specification
Wall-panel Installation instruction
Direction for use
- Connect the load wire at first, followed by the power wire; Please ensure short circuit can not occur between wires before turning on the power；
- Adopts RF full touch wall-panel remote control, with one color ring and 5 function buttons.
- The signal light flash– represents the signal has been sent well;
The function of buttons are shown as below:
The function of each button as below:
| Name of key | Instruction | Remarks |
| RGB ON/OFF | RGB:ON or OFF in anytime | RGB ON/OFF |
| W ON/OFF | White:ON or OFF in anytime | W ON/OFF |
| Mode | The mode will move to next, when touch the key each time | 10 modes in total. |
| Speed/Brightness + | The Speed/Brightness will +1, when touch the key each time | Speed for dynamic modes, Brightness for static modes. |
| Speed/Brightness – | The Speed/Brightness will -1, when touch the key each time | Speed for dynamic modes, Brightness for static modes. |
| Color Ring | Touch any color which is wanted |
10 modes in total as below:
| No | Patterns | Remarks |
| 1 | Static white | Brightness is adjustable |
| 2 | White flash | Speed is adjustable, brightness is unadjustable |
| 3 | White breath | |
| 4 | Three-color jump changing | |
| 5 | Seven-color jump changing | |
| 6 | Three-color gradient changing | |
| 7 | Seven-color gradient changing | |
| 8 | R/G cross fade | |
| 9 | R/B cross fade | |
| 10 | G/B cross fade |
Typical Applications
Application circuit:
Product information for placing order
| Product name | Item number |
| Wall panel RGBW controller (color ring) | HX-LWP86-RGBW |
